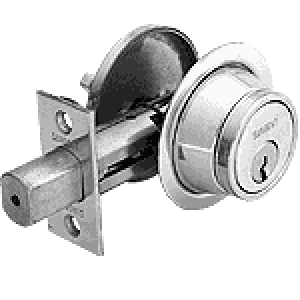

Deadbolt

470 Series-SARGENT

A medium grade cylindrical deadbolt, which meets Grade 2 ANSI 156.5 1000 series specifications.

Features and Benefits:

· Fits 161 cutout & 160 modified (drill 1 inch hole 3 7/16 inches deep).

· Designed for doors 1 1/2 inch to 2 3/8 inch thick.
· Meets ANSI A156.5 1000 Series Grade 2 requirements.
· 2 3/8 inch or 2 3/4 inch adjustable backset.
· Brass bolt with hardened steel pin.
· Brass, 6 pin cylinder.
· Can be masterkeyed with other Sargent locks, construction key systems available.

· Non handed.
· Stamped brass strike 2 1/4 inch by 1 inch wide with filler for 1 1/8 inch wide.

· 406 strike standard.
