Door knob / lever set

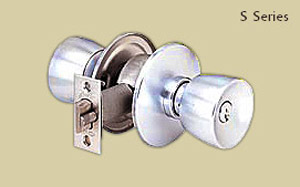

S SERIES-ARROW

Features:

Lock Chassis:
Stainless steel construction for corrosion resistance. Requires standard 2-1/8' (53.97 mm) bore through door.

Backset:
2-3/4' (69.85 mm)

Door Thickness:
1-3/8' (34.925 mm) to 2' (50.80 mm).

Latch:
Brass with 1/2' (12.7 mm) throw. Latch housing is stainless steel and requires a 1' (25.40 mm) bore in the edge of the door.

Latch Front:
Stainless steel, 2-1/4' (57.15 mm) x 1-1/8' (28.57 mm), or 2-1/4' (57.15 mm) x 1-1/8' (28.57 mm) full radius. Available with either flat or beveled fronts.

Strike:
Stainless steel. Standard marine strike measures 2-3/4' (69.85 mm) x 1-1/8' (28.57 mm) and has full radius with 7/8' (22.225 mm) lip to center dimension. Available with ANSI A115.2 strike measuring 4-7/8' (123.95 mm) x 1-1/4' (31.75 mm) lip to center dimension.

Handing: Reversible.

Cylinder, Standard:
Solid brass, 6 pin cylinder with standard Arrow “A” keyway. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Supplied with two 6 pin nickel silver keys.
